Edge lit modules


• Modules available in different color temperatures and lumen output
• Impressive lumen output with a minimum of energy consumption
• Use of assymetrical lenses
• Modules on IMS base (Insulated Metal Substrate)
• Connection made by means of connectors (plug and play system)
• Easy and fast installation

These modules can be customized following the customers needs. Different lenses, leds and pcb dimensions are possible

Product codes

 Art. Description Working voltage

(Vdc)

Power

(W)

Qty LEDs Lens Lightoutput

(lm)

Color temp.

(K)

IP

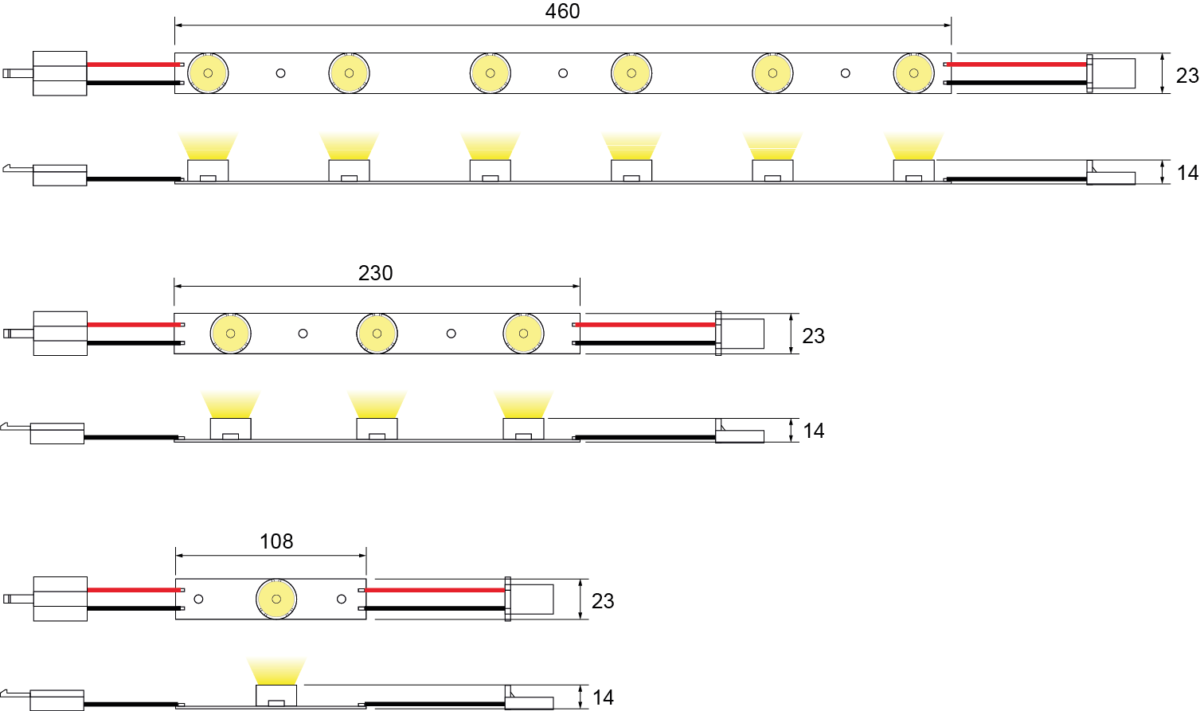

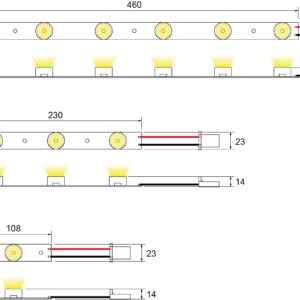

150 460 630 Ledmodule 6 LEDs + lens 3000K 24 16 6 10°/52° 1700 3000 20
150 46 0675 Ledmodule 6 LEDs + lens 7500K 24 16 6 10°/52° 2200 7500 20
150 230 330 Ledmodule 3 LEDs + lens 3000K 24 8 3 10°/52° 850 3000 20
150 230 375 Ledmodule 3 LEDs + lens 7500K 24 8 3 10°/52° 1100 7500 20
150 108 130 Ledmodule 1 LEDs + lens 3000K 24 3 1 10°/52° 275 3000 20
150 108 175 Ledmodule 1 LEDs + lens 7500K 24 3 1 10°/52° 360 7500 20

Accesories

1-10v dimming interface

Connected Light wireless interface

Dali dimming interface
