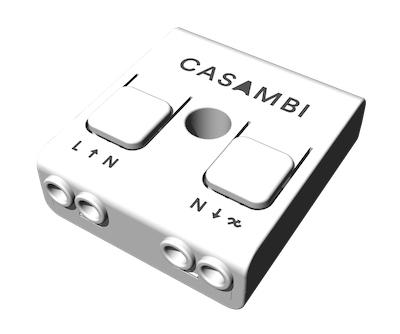

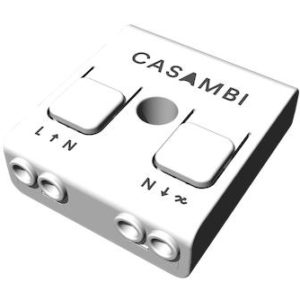

CBU-TED is a Bluetooth controllable, Casambi enabled trailing-edge. It can be installed behind a traditional wall switch, inside a luminaire or into a ceiling outlet box. Maximum allowable ambient temperature must be observed (see technical datasheet).

Art. 164 19 24 09 884
Description Bluetooth controllable dimmer -CBU-TED
Input 85-240VAC (50Hz -60Hz)
Output current 0,65A
Bluetooth range indoor 30 meter
Radio frequency 2,4 – 2,480 MHz
Max. output power radio +4dBm

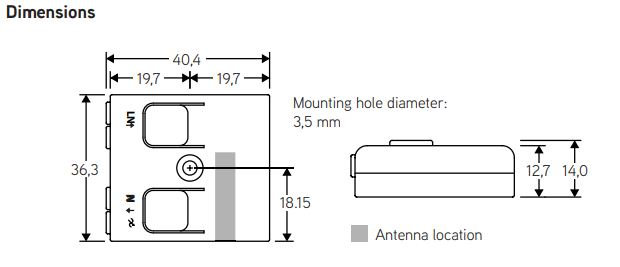

Dimensions 40,4 x 36,2 x 14 mm
Weight 15 gr
IP class IP20

Product codes

 Art. number  Description
 164 19 24 09 884  Bluetooth controllable dimmer -CBU-TED
