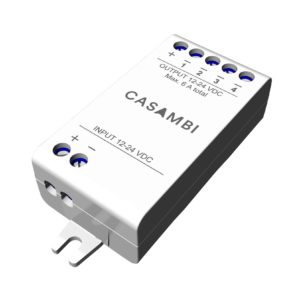

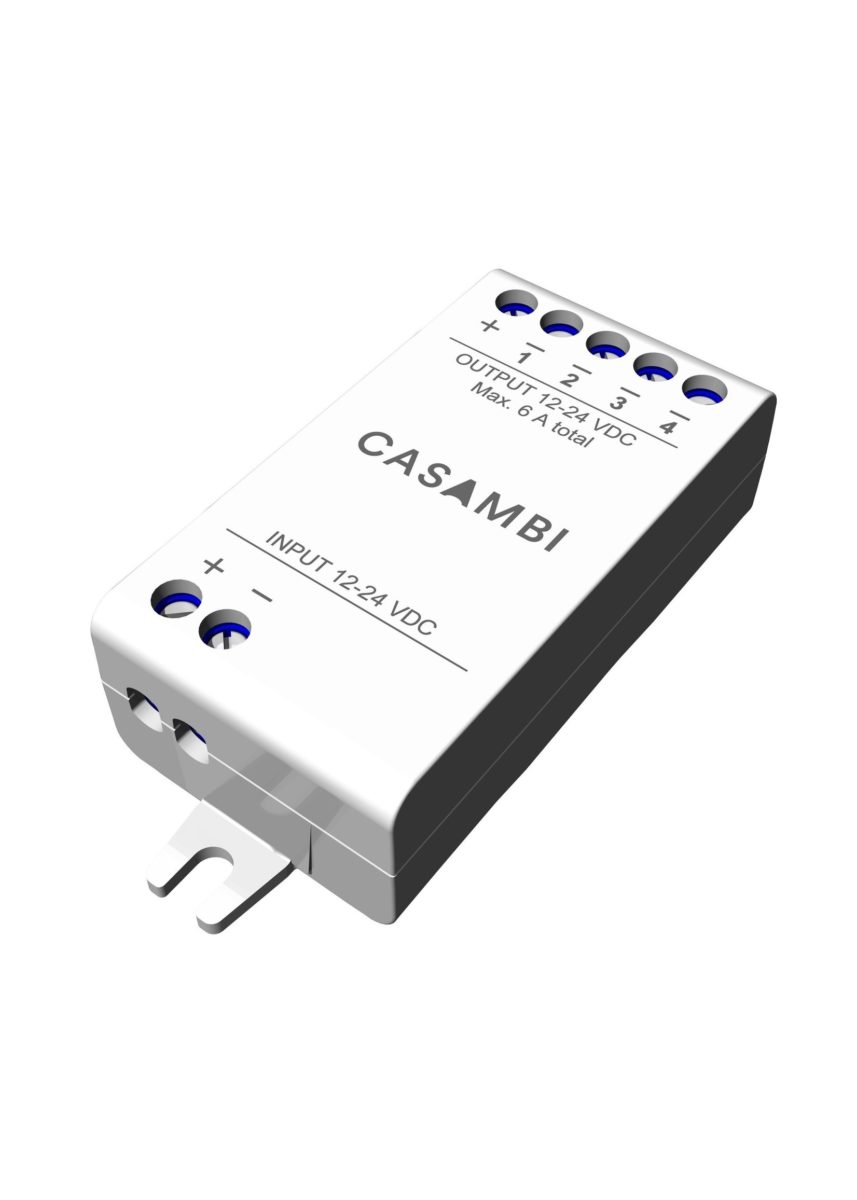

Bluetooth controllable dimmer -CBU-PWM4

CBU-PWM4 is a bluetooth controllable, casambi enabled four channel PWM dimmer for constant voltage LED loads, such as LED strips and constant voltage LED modules. It is connected between a 12-24VDC power supply and the constant voltage LED load.

Art. 164 19 24 10 93
Description Bluetooth controllable dimmer -CBU-PWM4
Input 12 – 24VDC
Max. output power 144W (24VDC)          /          72W (12V)
Current 6A
Bluetooth range indoor 30 meter
Radio frequency 2,4 – 2,480 MHz
Max. output power radio +4dBm

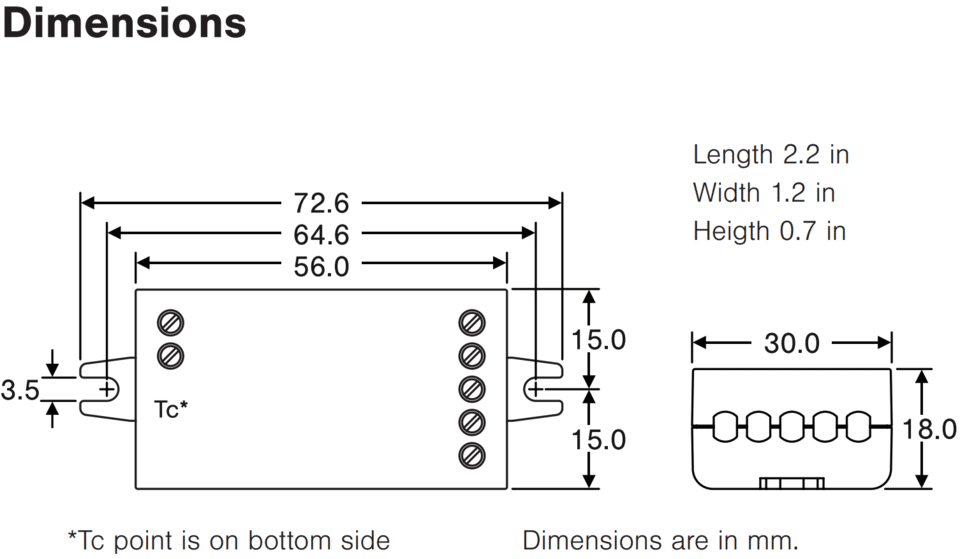

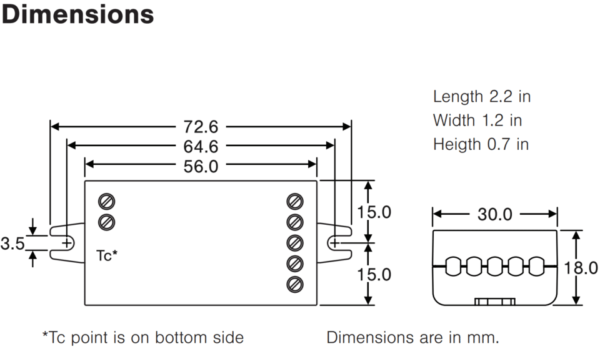

Dimensions 72,6 x 30 x 18 mm
Weight 23 gr
IP class IP20

Product codes

 Art. number  Description
 164 19 24 10 93 Bluetooth controllable dimmer -CBU-PWM4
