Dimmer Dali power led module

Multifunction 4-in-1 LED dimmer with multiple dimming protocols. Supports both leading and trailing edge. Matches all DALI systems in the market. 1 DALI address assigned by DALI master

Art. 164 19 24 00 01
Description Dimmer Dali power led module
Power 12 – 36 VDC
Input power consumption 0,35W
Output range 732 Hz
Working temp. -25° – +40°C
Diming range 0.1% – 100%

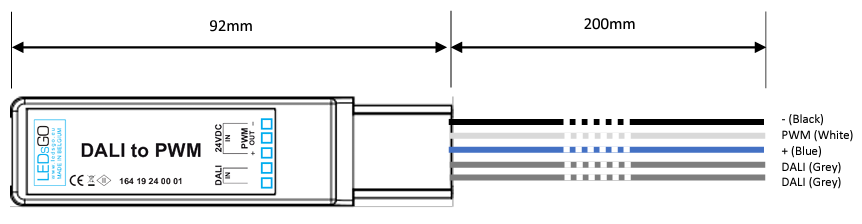

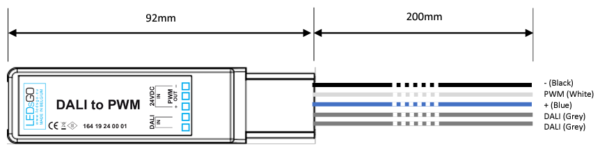

Dimensions 92 x 22 x 18 mm
Weight 50 gr
IP class IP20


Product codes

 Art. number  Description
 164 19 24 00 01  Dimmer Dali power led module


This device can be controlled by:

  • DALI

This device can control one of the folowing items:

  • 1 x monochrome Ledflex
