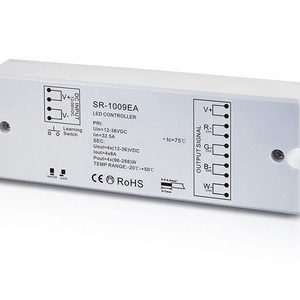

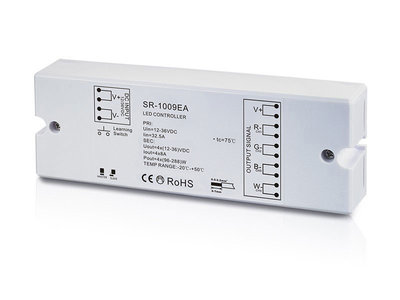

LED signal amplifier RGBW 24VDC
This device is used to repeat the dimming signal and to receive PWM signal control
| Art. | 17 10 24 009 |
| Description | LED signal amplifier RGBW |
| Power | 12 – 36 VDC |
| Output current | 3/4 x 8A |
| Output power | 3/4 x (96 – 288)W |
| Temp. range | -20° – +50°C |

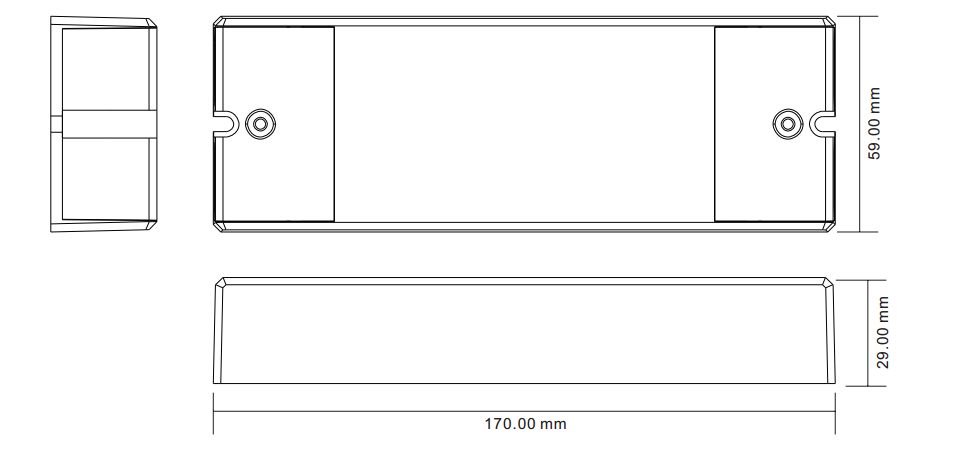

| Dimensions | 170 x 59 x 29 mm |
| IP class | IP20 |
Product codes
| Art. number | Description |
|---|---|
| 17 10 24 009 | LED signal amplifier RGBW |
This device can be controlled by:
- PWM
This device can control one of the folowing items:
- 4 x monochrome Ledflex
- 1 x tunable white Ledflex
- 1 x RGB Ledflex
- 1 x RGBW Ledflex
