0/1-10V / DALI interface – Connected Light

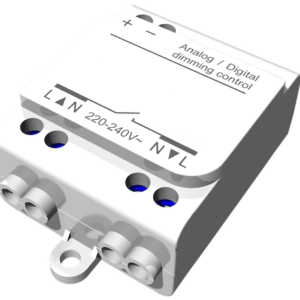

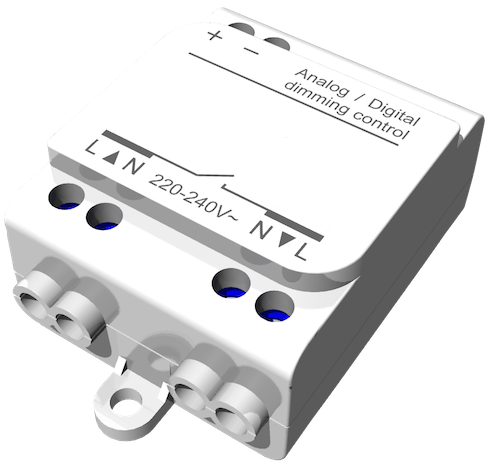

This is a wireless control unit for LED and halogen drivers with 0-10V, 1-10V or DALI dimming interface. Available with either analog 0-10V (and 1-10V) or digital Standalone DALI control interface.
With Standalone DALI output, it acts both as a controller and as a power supply making it possible to connect directly to an LED driver with DALI interface without the need for an external DALI power supply. This so called Standalone DALI makes it possible to implement multi-channel lighting systems with adjustable color (RGB) or color temperature, while keeping the wiring and number of components at their minimum. The module does not comply with IEC 60929 and therefore is not designed to be connected to an existing DALI network. The module can be used only in a closed system, i.e. as a part of a lighting system which is not connected to an external DALI network. The interface is controlled wirelessly with Casambi smartphone and tablet applications using Bluetooth 4.0 protocol.
The Casambi app can be downloaded free of charge from Apple App Store and Google Play Store. Devices form automatically a secure wireless mesh network so that a large number of fix-tures can be controlled from any point. No external gateway module is needed. It can be controlled also from a standard on/off wall switches.

Connection diagram DALI/0-10V driver


Connection diagram 1-10V driver

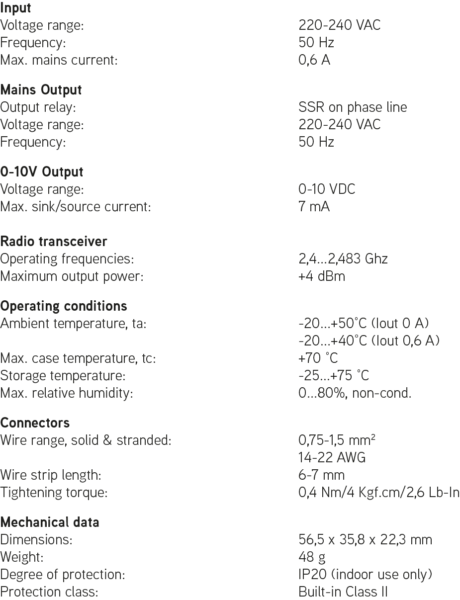

Dimensions

Product codes

Art. number Dimming signal version
164 19 24 09 72 0-10V
164 19 24 09 73 Dali broadcast 1ch
164 19 24 09 74 Dali 2ch dim
164 19 24 09 75 Dali 3ch dim
164 19 24 09 76 Dali 4ch dim
164 19 24 09 77 Dali Tunable White
164 19 24 09 78 Dali 3ch RGB
164 19 24 09 79 Dali 4ch dim, RGBW
164 19 24 09 80 Dali 4ch dim, RGB, White





Software

Media/Downloads

These are all public downloads. Login for more information and data or contact us for more information.
