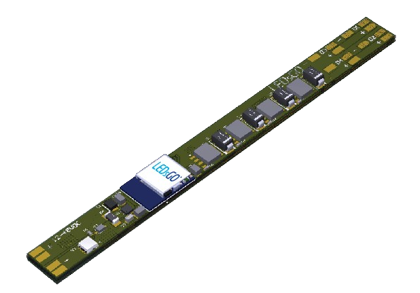

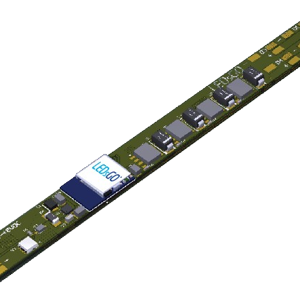

4ch PWM dimmer compact Casambi Ready

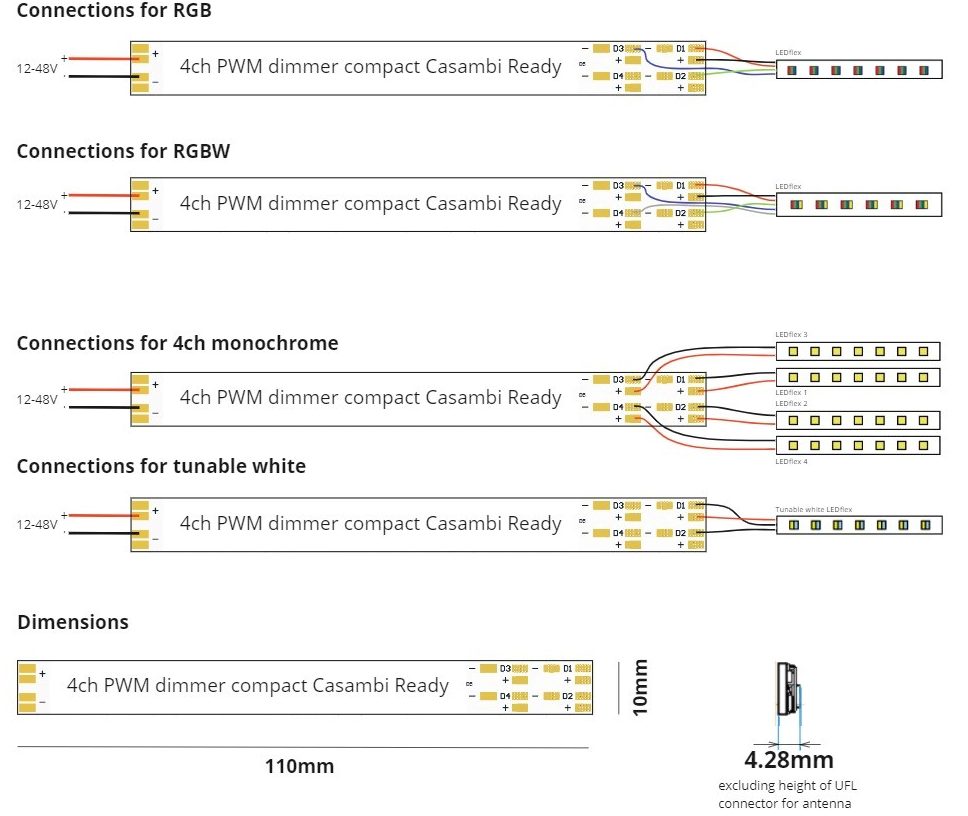

This casambi ready led controller/dimmer is designed to be used with several types of LED flex. It can also be used to control led light that are normally driven by a constant voltage driver. The voltage that is connected at the input will be found at the output so be sure that the used power supply and led type are rated on the same voltage. The module is available in different software version so monochrome, RGB and RGBW is possible.

Be aware you order the correct partnumber so you have the correct software for project. The module also has a push button connection. This can be used to control the connect led lights. Short press will restult in ON or OFF and a long press will dim the light untill you release the button. The push button can also be configured to control a scene or another casambi module in the same network.

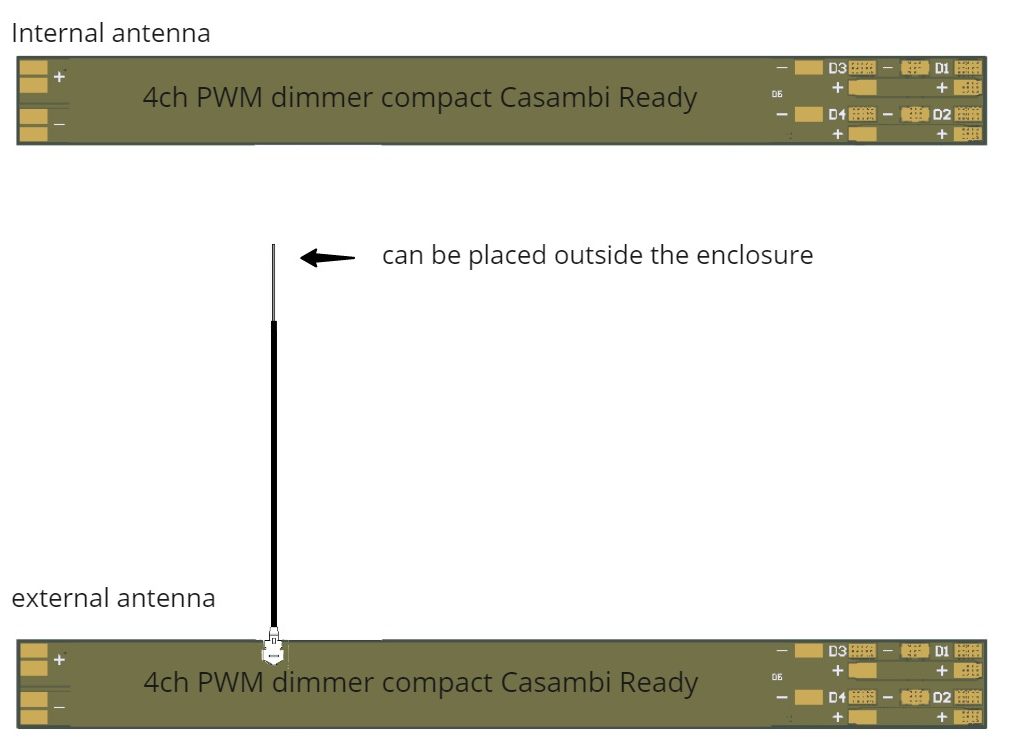

This module can be customized to your needs. The PCB has been designed so that you can extend the internal antenna with an external version.



If you have more questions regarding this product, contact us for more customisation possibilities.


Product codes

 Art. number  Software version
 164 19 24 26 61 4CH PWM dimmer Compact Casambi Ready
