Casambi Xpress switch

Xpress is a wireless user interface that can be configured via the Casambi app. The four target buttons can control a scene or an animation of the user’s choise or simply one luminaire, one luminaire group or all lamps together if so desired.

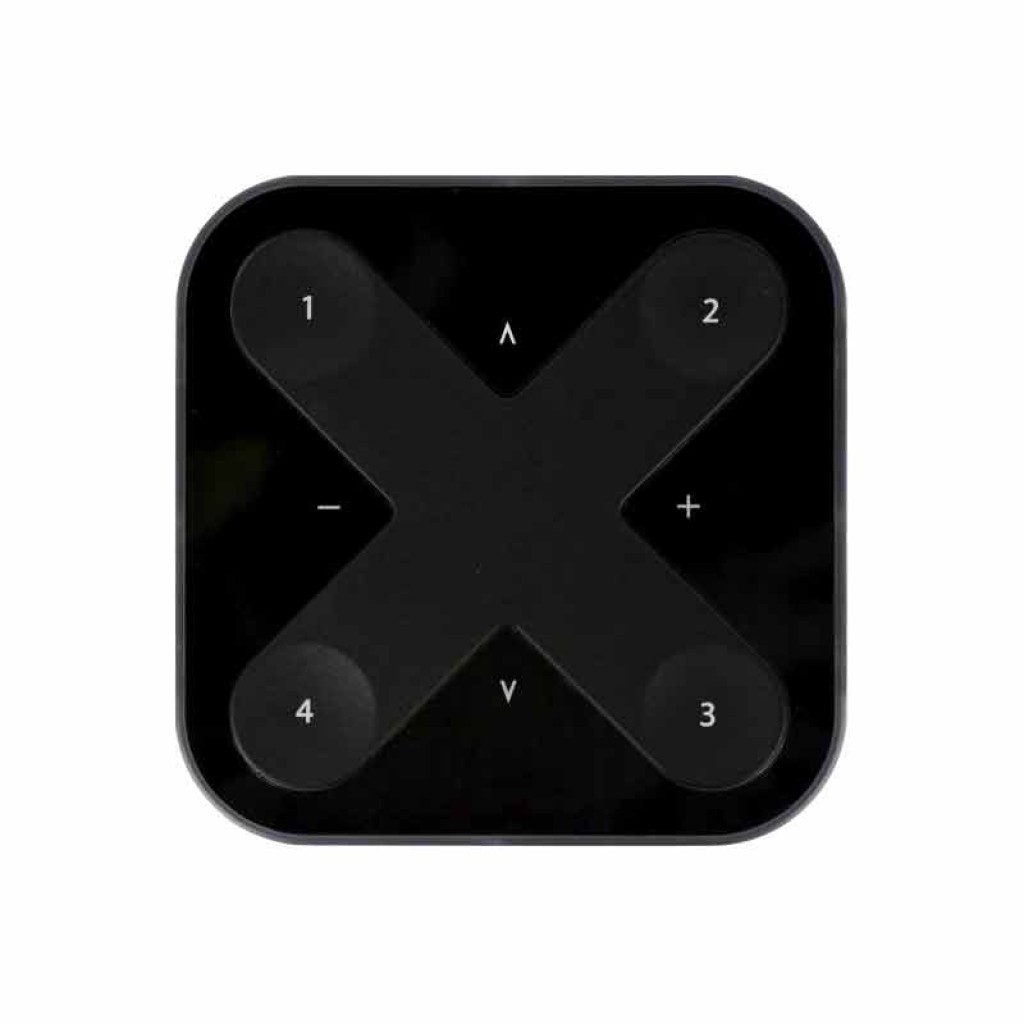

Art. Black 164 19 24 08 10

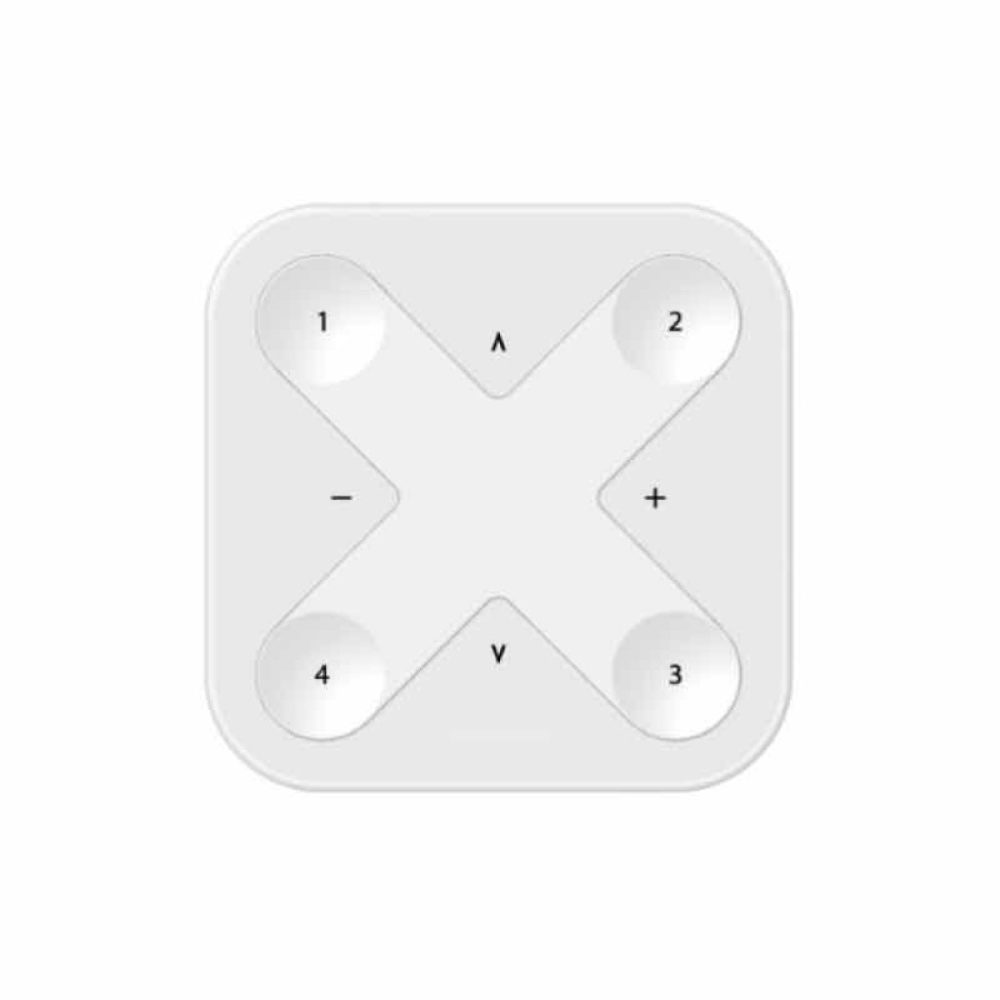

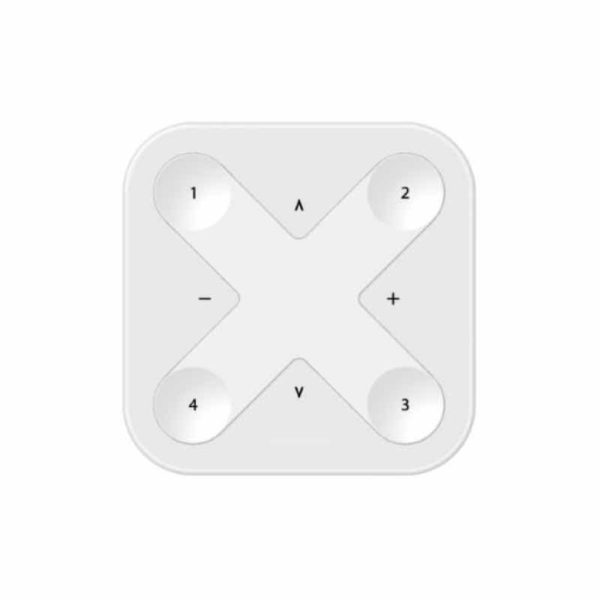

Art. White 164 19 24 08 11
Description Casambi Xpress switch
Battery CR2430 Lithium-ion
Batterylife 2-4 years, depending on usage
Range up to 50m in open air
mounting wall bracket
Dimensions 90 x 90 x 12 mm
Weight 25 gr
IP class IP20

Product codes

 Art. number  Description
 164 19 24 08 10 Casambi Xpress switch black
 164 19 24 08 11 Casambi Xpress switch white
