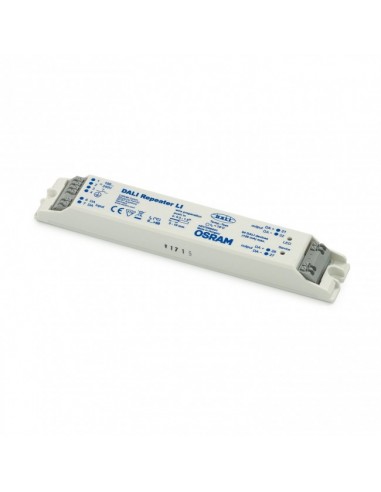

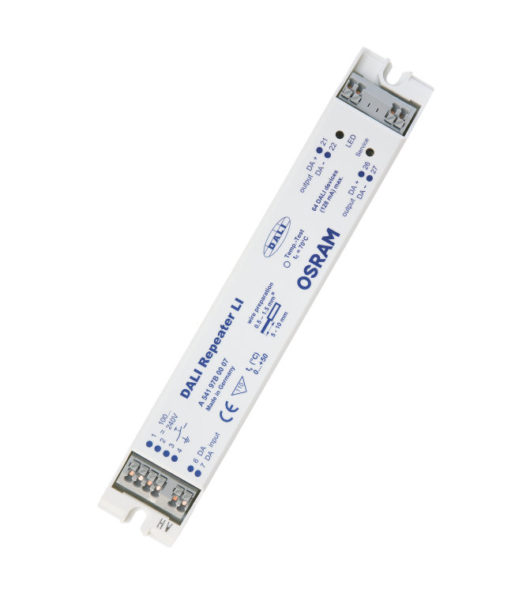

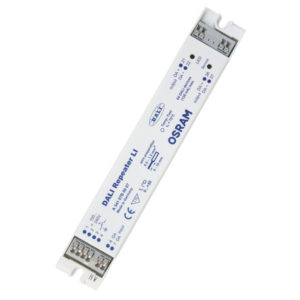

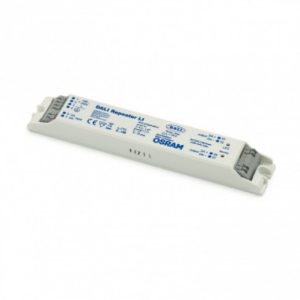

Dali Multi3 repeater LI

This device is used to repeat the dimming signal and to receive Dali signal control.

Art. 164 19 63 99 04
Description Dali Multi3 repeater LI
Power 100-240V AC
Power consumption Max. 4W
Input supply frequency 50Hz/ 60Hz
Temp. range 0 – +50°C
Dali output Max. 64 Dali ECG max. 130mA

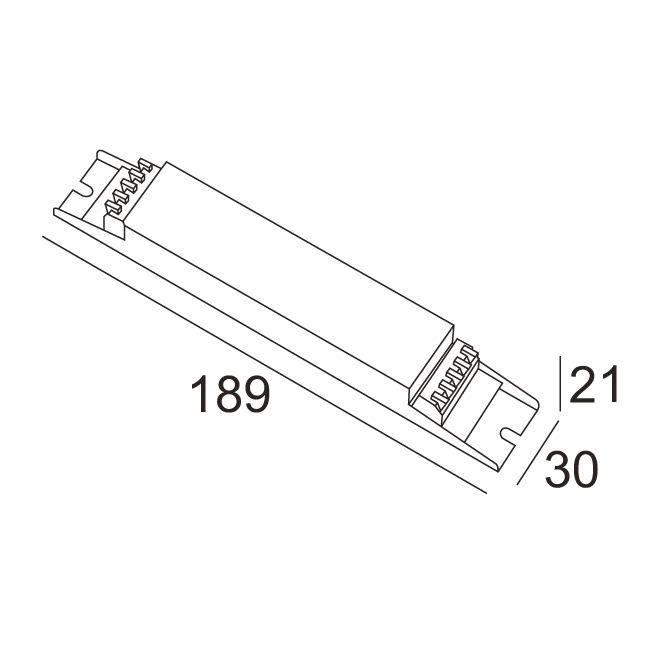

Dimensions 189 x 30 x 21 mm
IP class IP20

Product codes

 Art. number  Description
 164 19 63 99 04  Dali Multi 3 repeater


This device can be controlled by:

  • DALI

This device can control one of the folowing items:

  • 2 x DALI
