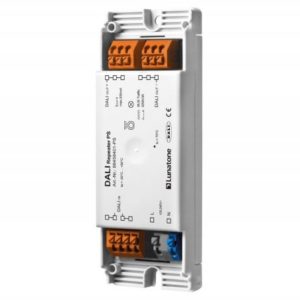

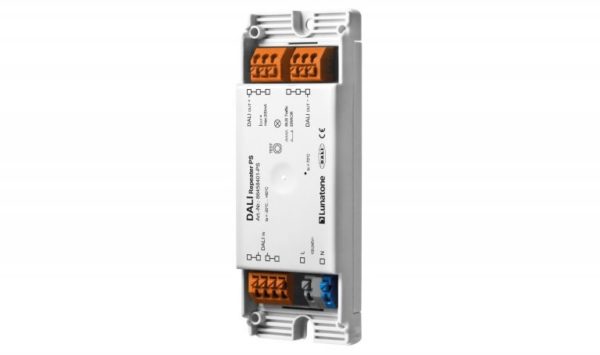

Dali repeater


This device is used to enhace the maximum DALI cable length.

Art. 164 19 63 99 05
Description Dali repeater
Power 110 – 240V AC
Power consumption 5,3W
Input supply frequency 50Hz/ 60Hz
Output voltage 12 – 20,5V
Max. dali supply current 250mA

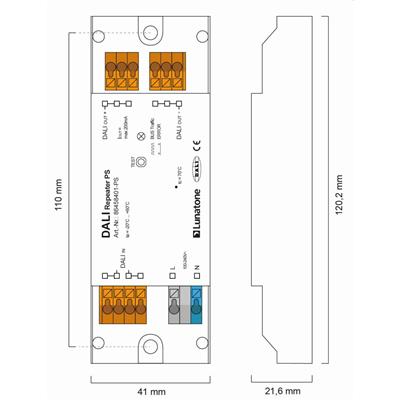

Dimensions 120 x 41 x 22 mm
IP class IP20



Product codes

 Art. number  Description
 164 19 63 99 05  Dali repeater
