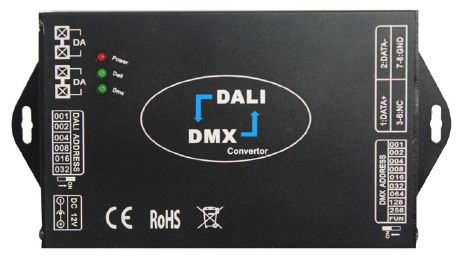

Dalit to DMX & DMX to dali converter

This converter can achieve conversion between Dali dimming signal and widely used DMX-512 standard signal. It can realize DMX module control by Dali master and also Dali device control by DMX master, realize 2 kinds of protocol in a seamless transition.

The module needs a supply of 12V. This is not included!

Art. 164 29 60 03 24
Description Dali to DMX & DMX to dali converter
Power 12 – 48 VDC
Input signal Dali/ DMX512
Output signal DMX512/ Dali
Static power consumption <1W
Working temp. -20° – +60°C

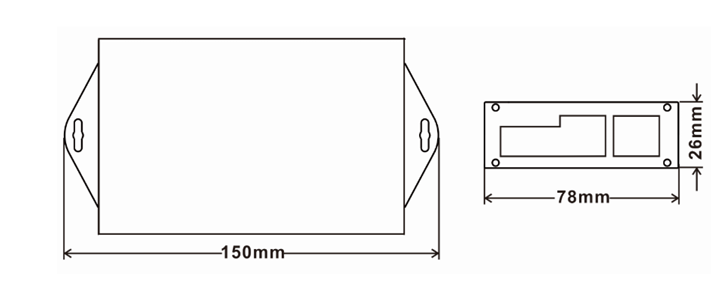

Dimensions 150 x 78 x 26 mm
Weight 150 gr
IP class IP20


Product codes

 Art. number  Description
  164 29 60 03 24   Dali to DMX & DMX to Dali converter


This device can be controlled by:

  • DALI
  • DMX

This device can control one of the folowing items:

  • DALI
  • DMX
