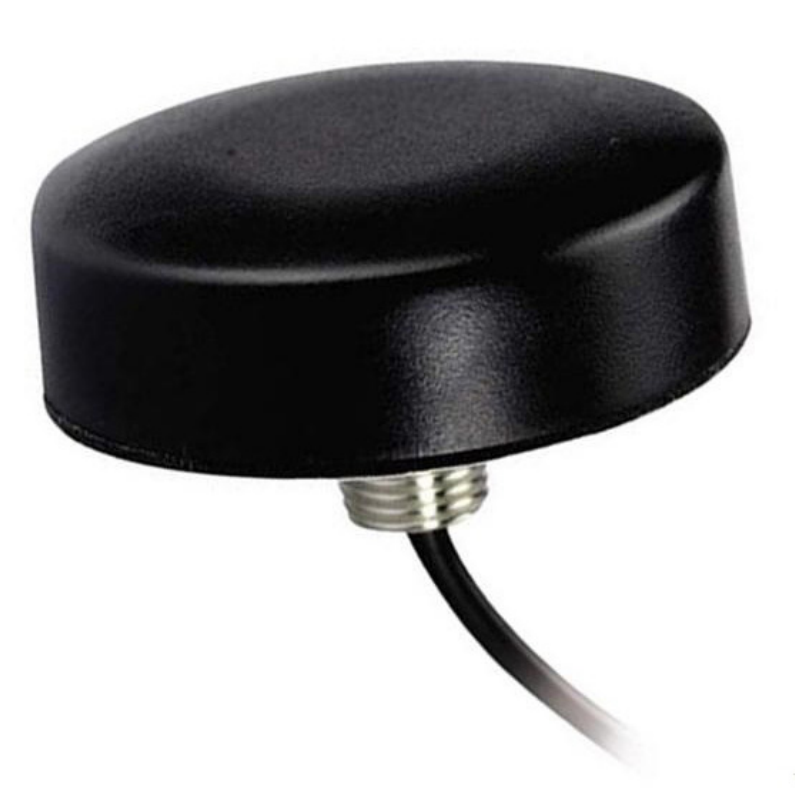

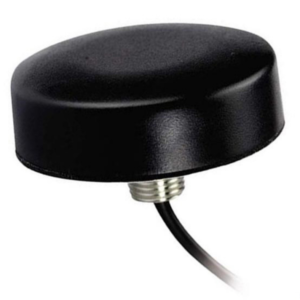

Outdoor Casambi repeater 24VDC

Having issues in range outdoors? This repeater enables you to close the gap between 2 modules that are too far away from each other.

Outdoor Casambi repeater 24VDC

Input: 24VDC
Max. power input: 72mW
Bluetooth range indoor: 30 meter
Radio frequency: 2,4 – 2,480 GHz
Max. output power radio: +4dBm
IP-rating: IP65

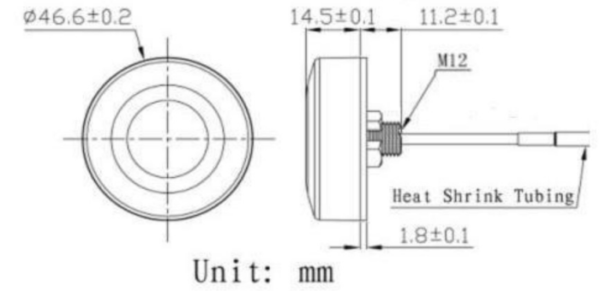

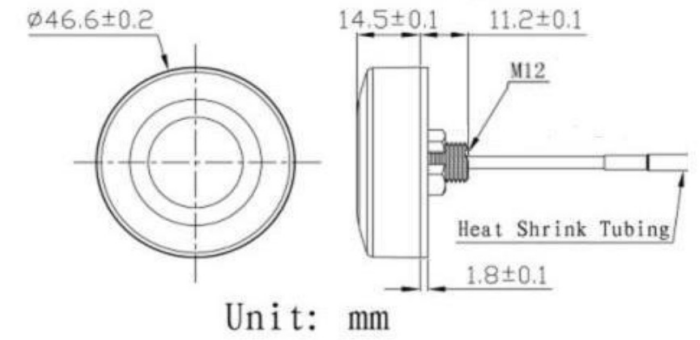

Dimensions: DIA 47,0 x 15 mm
Weight: 220 gr
Wiring: 22AWG Red & Black, 700mm long + 10mm stripped
Mount: Screw M12/Roof with a slotted nut (can go in and out easily even after the wiring connections)

Product codes

 Art. number  Description
 164 19 24 12 17 Outdoor Casambi repeater 24VDC
