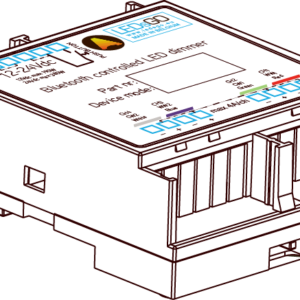

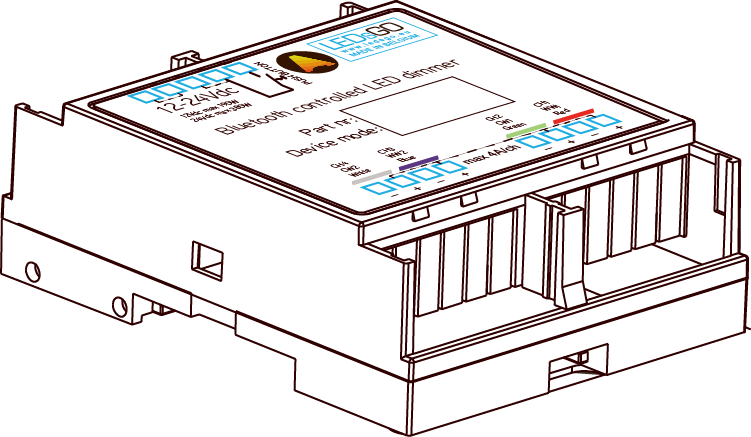

Power pwm dimmer 4ch


This casambi ready led controller/dimmer is designed to be used with several types of LEDflex. It can also be used to control led light that are normally driven by a constant voltage driver. The voltage that is connected at the input will be found at the output so be sure that the used power supply and led type are rated on the same voltage. The module is available in dierent software version so monochrome, RGB and RGBW is possible.

Be aware you order the correct partnumber so you have the correct software for project. The module also has a push button connection. This can be used to control the connect led lights. Short press will restult in ON or OFF and a long press will dim the light untill you release the button. The push button can also be congured to control a scene or another casambi module in the same network.

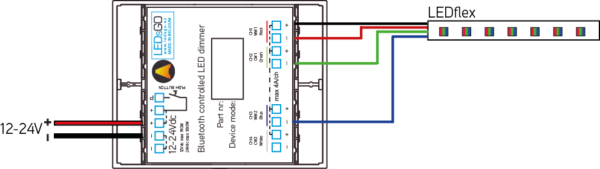

Connections for RGB

Connections for RGBW



Connections for 4ch monochrome

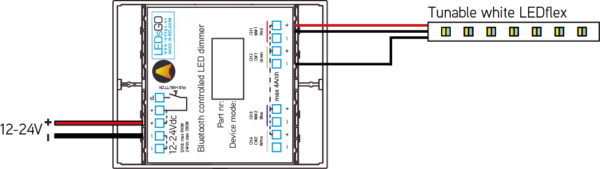

Connections for tunable white

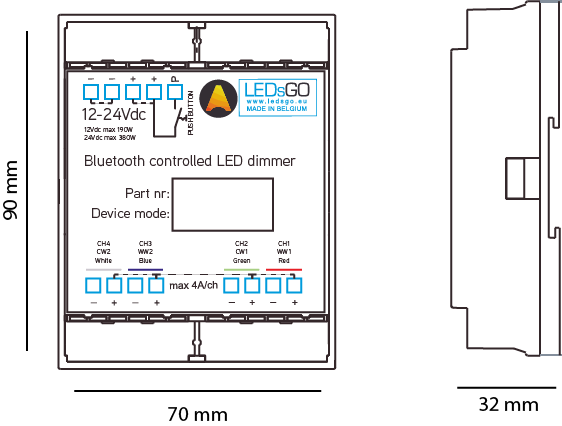

Dimensions



Product codes

Art. number Software version
164 19 24 10 56 4ch monochrome
164 19 24 10 57 RGB
164 19 24 10 58 RGBW
164 19 24 13 20 Tunable White





Software

Media/Downloads

These are all public downloads. Login for more information and data or contact us for more information.
