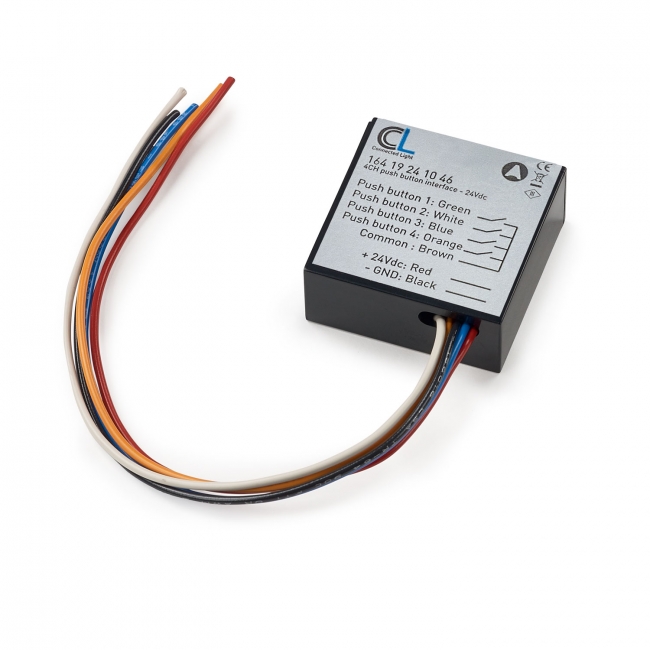

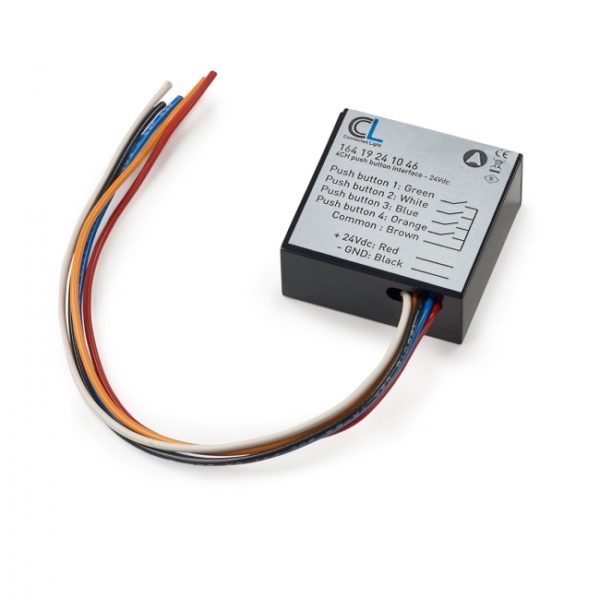

4 Channel push button interface – 24V powered

This interface is designed to connect any ‘normal open’ push button to a casambi network. In comparising with the battery version, here you need a 24V powering which is excellent when this module is not easy to reach after installation.  1 to 4 push buttons can be used and they can be configured in the app to control a lamp, a group of lamps, a scene/animation or just control all lamps in one press. The box is small enough to fit any wall box and the wires are a size that will fit any screw terminal. The interface is compatible with all products that are compatible with the casambi bluetooth network. Each time a button is pressed the module will be activated for a few seconds and then goes automatically in a standby mode.

Art. 164 19 24 10 46
Description Bluetooth 4CH push button interface
Power 24VDC, 10mA
Max current 0.2mA
Operating frequencies 2,4…2,483 Ghz
Rf output power +4dBm
Ambient Temp ta -20…+45°C
Storage Temp -20…+75°C
Max. relative humidity 0..80%, non condensing
Wire type 22AWG
Dimensions 38 x 38 x 15 mm
Weight 0.05Kg
IP class IP20

Product codes

Description Art. number
4ch push button interface 164 19 24 10 46
